P-Duke Technology Launches High Power Design Medical AC/DC Power Supplies

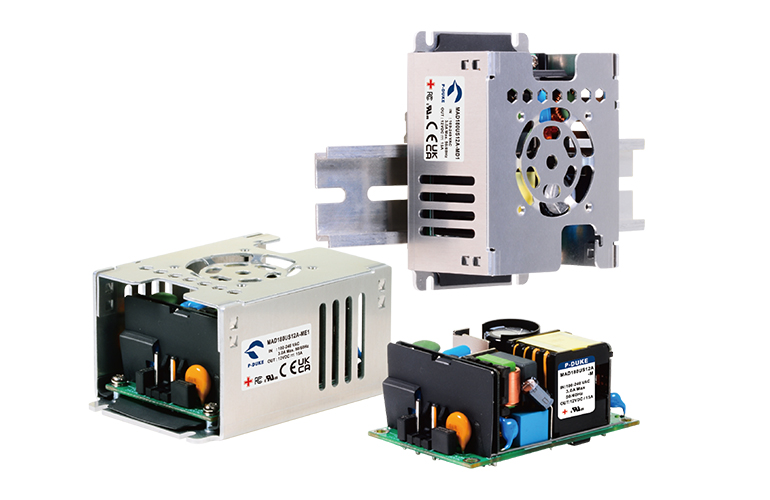

P-Duke MAD180 Series [Image courtesy of P-Duke]

P-Duke Technology has launched its latest 180W high density medical AC/DC power supplies.

The MAD180″ series has the most compact design in the same power range of the power supplies, (making it) ideal for medical diagnostic equipment such as MRI scanners, laser treatment, X-rays and patient monitoring. patients,” the company said.

Featuring forced air cooling, the MAD180 series power supplies offer a maximum output power of 220W for 5 seconds, 2XMOPP isolation and low leakage current of less than 100µA, the company said.

Other details and specifications provided by the company include:

Power supplies are EIC/EN/ANSI 60601-1 certified and are available in 2 x 3 inch open frame versions or optional boxed versions and DIN rail versions with a universal input range of 85 to 264 Vac and also support 120 -370Vdc input range, according to P-Duke. This series provides a single output voltage of 12, 15, 18, 24, 28, 36, 48, 53 Vdc. The output voltage can be easily adjusted up to ±8% with the built-in potentiometer.

P-Duke lists protection functions for: overvoltage protection (latching mode); overcurrent protection (hiccup mode and auto-recovery); short-circuit protection (continuous and self-recovery); and overheat protection (detected by internal thermistor; hiccup mode and auto-recovery).

The MAD180 series features long life electrolytic capacitors, efficiencies up to 94%, 0.95 power factor correction, 150mW max no load power consumption and IEC protection types class I and class II. The power supplies can operate at an altitude of up to 5000m and with its superior performance at an operating temperature of -40°C to +85°C.

MAD180 power supplies have been certified according to the following standards:

  • Safety approvals: IEC/EN/UL 62368-1 and IEC/EN/ANSI/AAMI ES 60601-1
  • Conducted emissions: EN 55032 Class B
  • Radiated emissions: EN 55032 Class A

The product warranty is 5 years.
